Media Processing Configuration
General
Enter an output name, support a-z, 0-9, and _ (underscore). The output name is part of the playback URL.

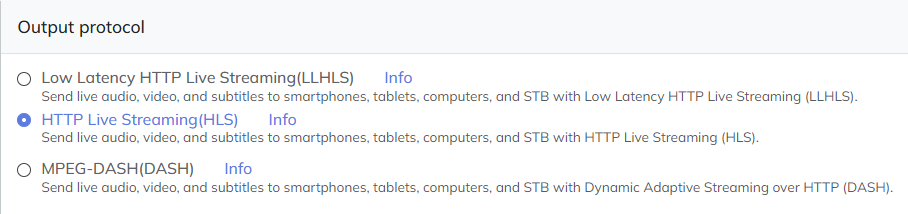

Output Protocol
Support Low Latency HLS (LL-HLS), HLS, and MPEG-DASH.

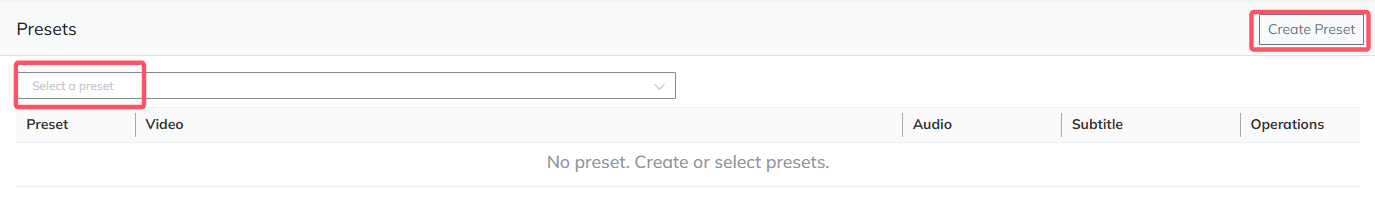

Preset
At least one transcoding preset must be created or selected. Refer to Transcoding Preset for detailed configuration.
Package
When using HLS protocol, audio format can be configured. Supported formats: .ts and .mp3.

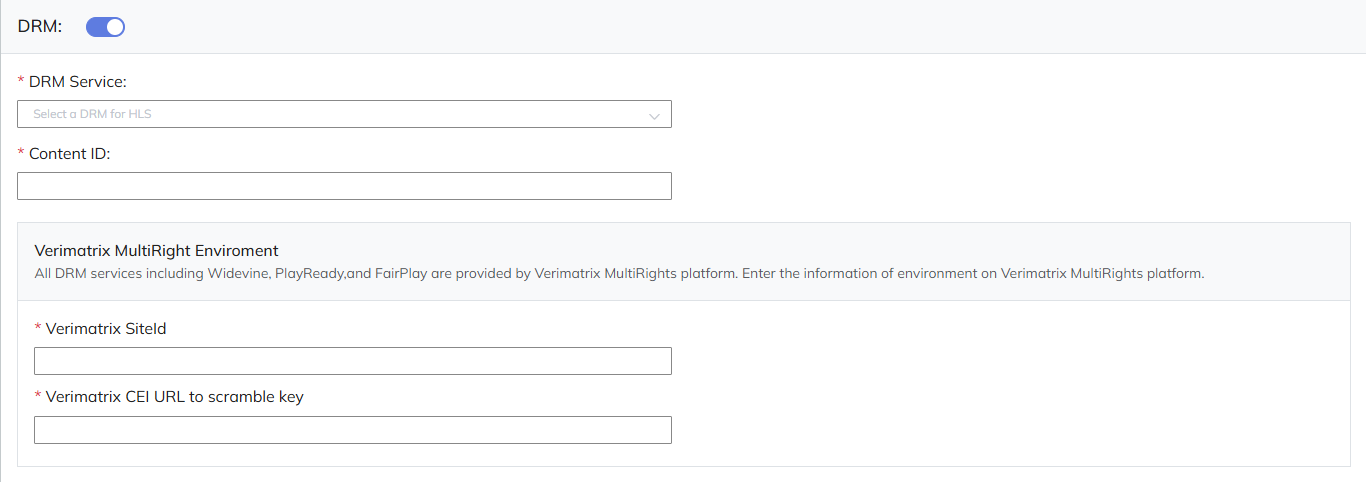

DRM
DRM protection is available through the Verimatrix MultiRights DRM Platform:
| Protocol | DRM Support |
|---|---|
| HLS / LL-HLS | FairPlay |
| MPEG-DASH | Widevine, PlayReady |
Required configuration parameters:
| Parameter | Description |
|---|---|
| Content ID | Unique content identifier for DRM licensing |
| SiteId | Verimatrix site identifier |
| CEI URL | Content encryption interface URL |

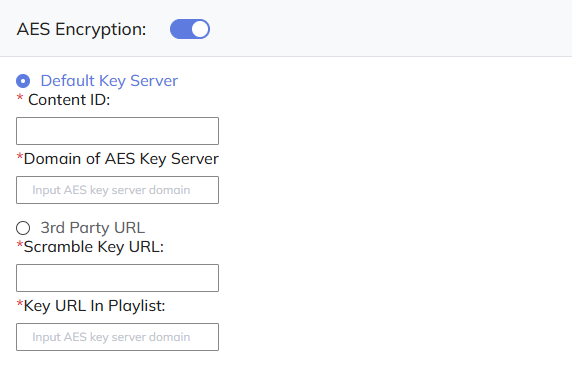

AES Encryption
AES-128 encryption for HLS live streams.
Time Shifting
Enable rewind functionality within the live buffer duration. For advanced time-shifting features, refer to Time Shifting.

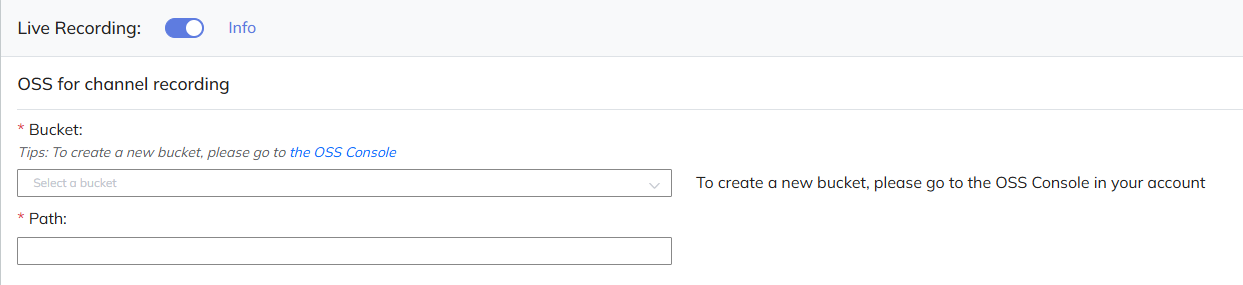

Live Recording
Automatically generates recordings from multiple rendition outputs based on configured transcoding presets.
