Ingress Management

Ingress management provides comprehensive monitoring and configuration of NGINX Ingress Controllers, load balancer integration, and external access management for Kubernetes clusters.

Accessing Ingress Management​

  1. Go to the cluster details page
  2. Click on the "Ingress" tab in the cluster navigation
  3. The ingress management interface displays controller status and configuration

![Figure needed]

Screenshot of cluster navigation with Ingress tab highlighted

Interface Overview​

The ingress management interface provides:

  • Controller Status: Real-time NGINX Ingress Controller health
  • Load Balancer Health: External load balancer monitoring
  • Service Configuration: Ingress service settings and endpoints
  • Statistics Integration: HAProxy statistics for load balancer performance

NGINX Ingress Controller Status​

Controller Health Monitoring​

![Figure needed]

Screenshot of NGINX Ingress Controller status display

Health States​

  • 🟢 Healthy: Ingress controller operational with external IP assigned

    • Full Functionality: All ingress features available
    • External Access: External IP address allocated and functional
    • Load Balancing: Load balancer healthy and distributing traffic

  • 🟡 Not Ready: Ingress controller starting or degraded performance

    • Limited Functionality: Some features may be unavailable
    • Pending IP: External IP allocation in progress
    • Performance Issues: Reduced performance or capacity

  • 🔴 Not Enabled: Ingress controller not installed or failed

    • No Functionality: Ingress services unavailable
    • No External Access: No external IP allocated
    • Installation Required: Ingress controller needs installation

Controller Information Display​

Service Details​

  • Service Name: Kubernetes service name for ingress controller
  • Service Type: Load balancer service type configuration
  • Cluster IP: Internal cluster IP for ingress service
  • External Traffic Policy: How external traffic is routed
  • Session Affinity: Session persistence configuration

Status Monitoring​

  • Pod Status: Ingress controller pod health and readiness
  • Replica Count: Number of ingress controller replicas
  • Resource Usage: CPU and memory consumption
  • Configuration Status: Ingress configuration validation

Load Balancer Integration​

External Load Balancer​

![Figure needed]

Screenshot of load balancer status and configuration

Load Balancer Information​

  • External IP: Public IP address for ingress traffic
  • Provider: Load balancer provider (vCloud/Cloud provider)
  • Health Status: Load balancer operational health
  • Creation Status: Load balancer provisioning status

Port Configuration​

  • HTTP Port: Port 80 for HTTP traffic
  • HTTPS Port: Port 443 for HTTPS traffic
  • Custom Ports: Additional configured ports
  • Target Ports: Backend port mappings

Service Configuration​

Service Type Details​

# Example ingress service configuration
apiVersion: v1
kind: Service
metadata:
  name: nginx-ingress-controller
spec:
  type: LoadBalancer
  ports:
  - name: http
    port: 80
    targetPort: http
  - name: https
    port: 443
    targetPort: https
  selector:
    app: nginx-ingress-controller

Configuration Options​

  • LoadBalancer: Automatic external IP allocation
  • NodePort: Service accessible on specific node ports
  • ClusterIP: Internal cluster access only

HAProxy Statistics Integration​

Master Load Balancer Statistics​

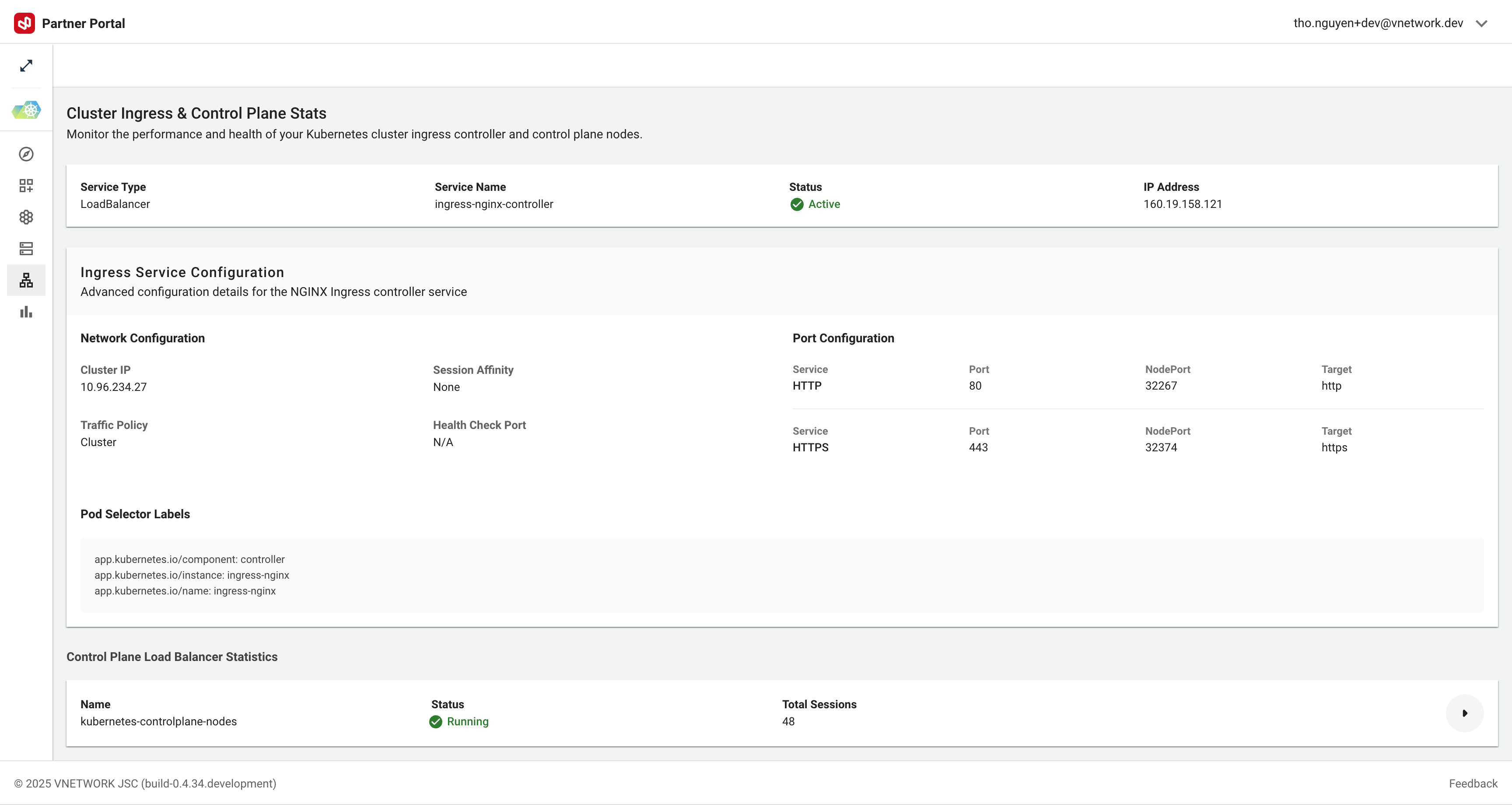

Control Plane Load Balancer Statistics

Control Plane Load Balancer Statistics showing running kubernetes-controlplane-nodes with active sessions

Statistics Features​

  • Backend Health: Status of ingress controller backends
  • Connection Statistics: Active connections and traffic metrics
  • Performance Metrics: Request rates and response times
  • Health Monitoring: Automatic health checks for backends

Statistics Information​

  • Active Connections: Current active connections
  • Total Requests: Cumulative request count
  • Error Rates: Error rate statistics
  • Response Times: Average response time metrics

Ingress Configuration​

Service Type Configuration​

During cluster creation, ingress service type can be configured:

![Figure needed]

Screenshot of ingress configuration during cluster creation

LoadBalancer Configuration​

  • Automatic IP: External IP automatically allocated
  • Cloud Integration: Native cloud load balancer integration
  • High Availability: Built-in high availability features
  • Traffic Distribution: Automatic traffic distribution

NodePort Configuration​

  • Port Range: Service accessible on 30000-32767 port range
  • Manual Management: Requires manual port management
  • Firewall Rules: Manual firewall rule configuration
  • Direct Access: Direct access to cluster nodes

ClusterIP Configuration​

  • Internal Only: Internal cluster access only
  • Manual Exposure: Requires manual external exposure
  • Advanced Setup: For complex networking scenarios
  • Custom Solutions: Custom ingress solutions

Ingress Class Configuration​

Default Ingress Class​

  • Class Name: "nginx" (default)
  • Controller Association: Associated with NGINX Ingress Controller
  • Resource Selection: Used by ingress resources without explicit class
  • Multiple Controllers: Support for multiple ingress controllers

Multiple Ingress Classes​

# Example ingress resource with specific class
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: example-ingress
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  rules:
  - host: example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: example-service
            port:
              number: 80

Monitoring and Health Checks​

Real-time Monitoring​

Status Updates​

  • Automatic Refresh: Ingress status updates every 30 seconds
  • Health Checks: Continuous health monitoring
  • Alert Conditions: Automatic detection of issues
  • Status History: Historical status information

Performance Monitoring​

  • Traffic Metrics: Ingress traffic volume and patterns
  • Response Times: Application response time monitoring
  • Error Rates: HTTP error rate tracking
  • Capacity Utilization: Ingress controller resource usage

Health Check Configuration​

Ingress Controller Health​

  • Readiness Probes: Verify controller readiness
  • Liveness Probes: Ensure controller remains healthy
  • Health Endpoints: Dedicated health check endpoints
  • Automatic Recovery: Automatic restart on health failures

Load Balancer Health​

  • Backend Checks: Health checks for ingress controller backends
  • TCP Checks: TCP-level connectivity verification
  • HTTP Checks: Application-level health verification
  • Custom Checks: Configurable health check parameters

Ingress Usage Examples​

Basic HTTP Ingress​

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: web-app-ingress
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  rules:
  - host: webapp.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: web-app-service
            port:
              number: 80

HTTPS Ingress with TLS​

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: secure-app-ingress
  annotations:
    kubernetes.io/ingress.class: "nginx"
    cert-manager.io/cluster-issuer: "letsencrypt-prod"
spec:
  tls:
  - hosts:
    - secure.example.com
    secretName: secure-app-tls
  rules:
  - host: secure.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: secure-app-service
            port:
              number: 443

Multi-service Ingress​

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: multi-service-ingress
  annotations:
    kubernetes.io/ingress.class: "nginx"
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:
  - host: api.example.com
    http:
      paths:
      - path: /v1
        pathType: Prefix
        backend:
          service:
            name: api-v1-service
            port:
              number: 80
      - path: /v2
        pathType: Prefix
        backend:
          service:
            name: api-v2-service
            port:
              number: 80

Best Practices​

Configuration​

  1. Service Type: Choose appropriate service type for requirements
  2. TLS Certificates: Use cert-manager for automated certificate management
  3. Path Routing: Design clear path routing strategies
  4. Host Management: Organize hosts logically

Performance​

  1. Load Balancing: Ensure proper load balancer configuration
  2. Resource Allocation: Allocate sufficient resources to ingress controller
  3. Caching: Implement appropriate caching strategies
  4. Compression: Enable compression for better performance

Security​

  1. TLS Configuration: Enforce HTTPS where appropriate
  2. Access Control: Implement access control policies
  3. Rate Limiting: Configure rate limiting for protection
  4. Security Headers: Configure appropriate security headers

Monitoring​

  1. Health Monitoring: Monitor ingress controller health continuously
  2. Performance Metrics: Track performance metrics
  3. Error Monitoring: Monitor and alert on errors
  4. Capacity Planning: Plan for traffic growth

Next: Learn about Network Troubleshooting for resolving common networking issues.
