WAF Access Control provides comprehensive IP and geographic access management, enabling precise control over traffic reaching your origin servers through allowlists, blocklists, and geographic restrictions.

Current Service Status​

Note: Access Control rules have immediate effect with up to 5-second propagation time across all global edge locations

Quick Start​

For Basic Access Control Setup​

  1. Configure IP Allowlist - Add trusted IP addresses or CIDR ranges
  2. Set Geographic Restrictions - Block or allow specific countries/regions
  3. Test and Validate - Verify rules work as expected before applying broadly
  4. Monitor and Adjust - Review access logs and adjust rules as needed

Overview​

The Access Control feature allows setting up access control lists based on IP addresses (CIDR/IP) or geographical locations (Geo), including two types of lists: Whitelist and Blacklist. This is the first layer of protection, helping to block unauthorized access to the origin through the Origin Shield layer.

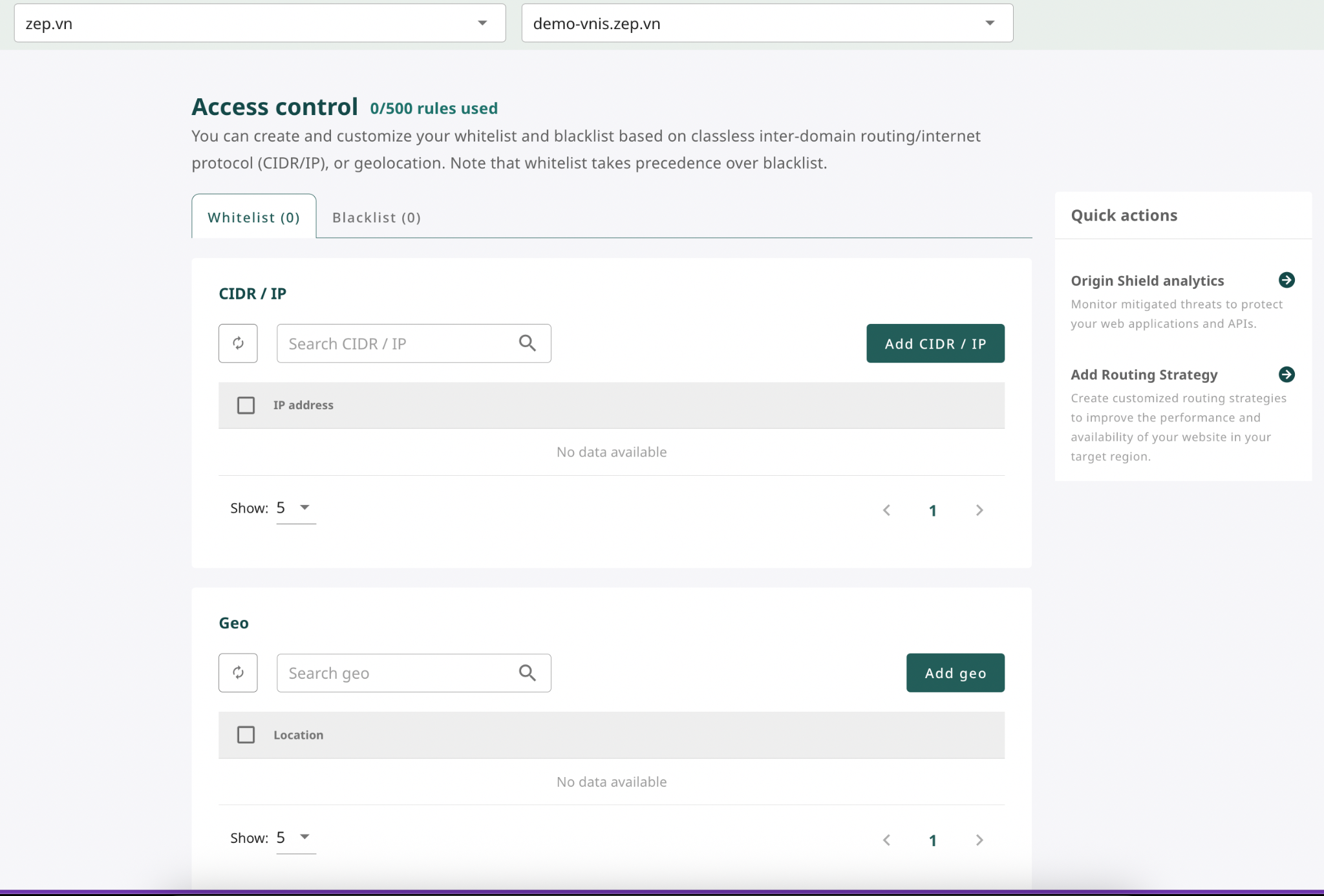

Configuration Interface​

The Access Control interface is divided into two main tabs:

  • Whitelist: Allow list. Access from IPs or regions in the whitelist will always be prioritized.
  • Blacklist: Block list. Access from IPs or regions in the blacklist will be denied, unless they match the whitelist.

The system supports a maximum of 500 rules for each type of list.

Note: The Whitelist will take priority over the Blacklist in case of conflicts.

CIDR / IP Configuration​

In the CIDR / IP section, you can enter one or more IP addresses or address ranges (CIDR format), for example:

1.1.1.1
10.3.1.0/24

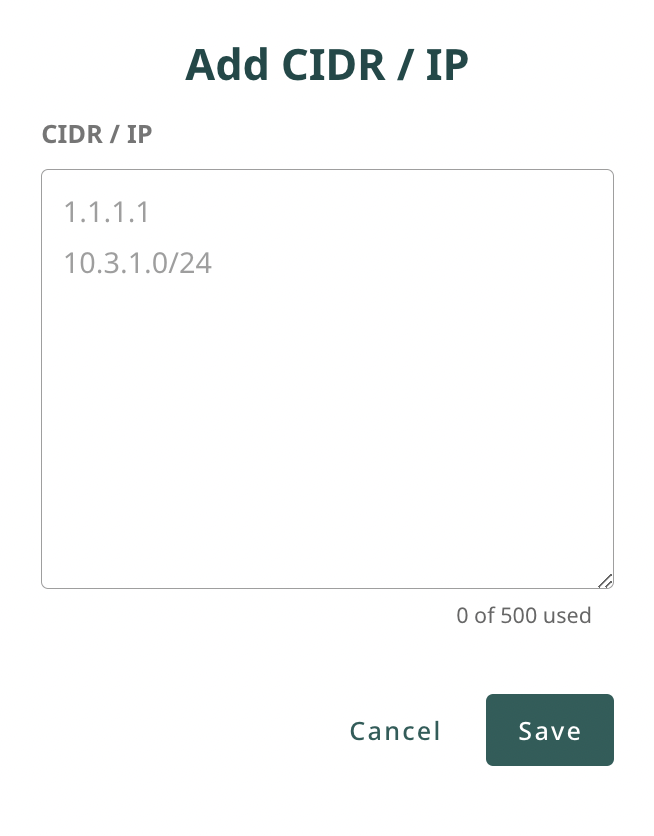

  • Add CIDR / IP: Opens form to enter list of IPs to allow or block.
  • Search CIDR / IP: Supports quick search within the configured list.
  • IP List displays an information table including configured addresses, with pagination and row display options.

Geographical (Geo) Configuration​

In the Geo section, you can configure access lists by country:

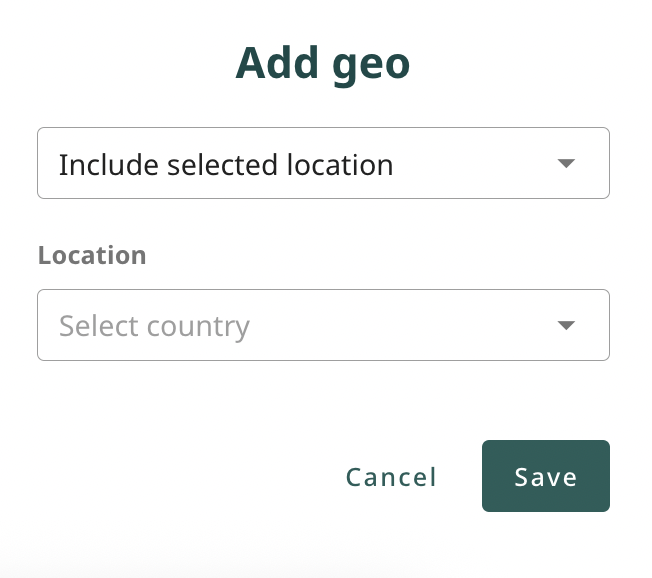

  • Add Geo: Opens form to configure geographical regions.

  • Configuration Types:

    • Include Selected Location: Only allow access from selected countries.
    • Exclude Selected Location: Block access from selected countries.

  • Location: The list of selected countries will be displayed in the table below.

Deleting IP or Region Operations​

To delete an IP or region from the control list:

  1. Check the corresponding box for the item to be deleted (example: Afghanistan).
  2. Click the Delete (x) button in the top-right corner of the list table.

The system will automatically update after the deletion operation is completed.

Getting Support​

Access Control Configuration: Contact VNIS security team for advanced access control setup and geographic restriction guidance
Rule Optimization: Get expert assistance for access control rule optimization and performance tuning
Incident Response: 24/7 support for access control related security incidents and troubleshooting
